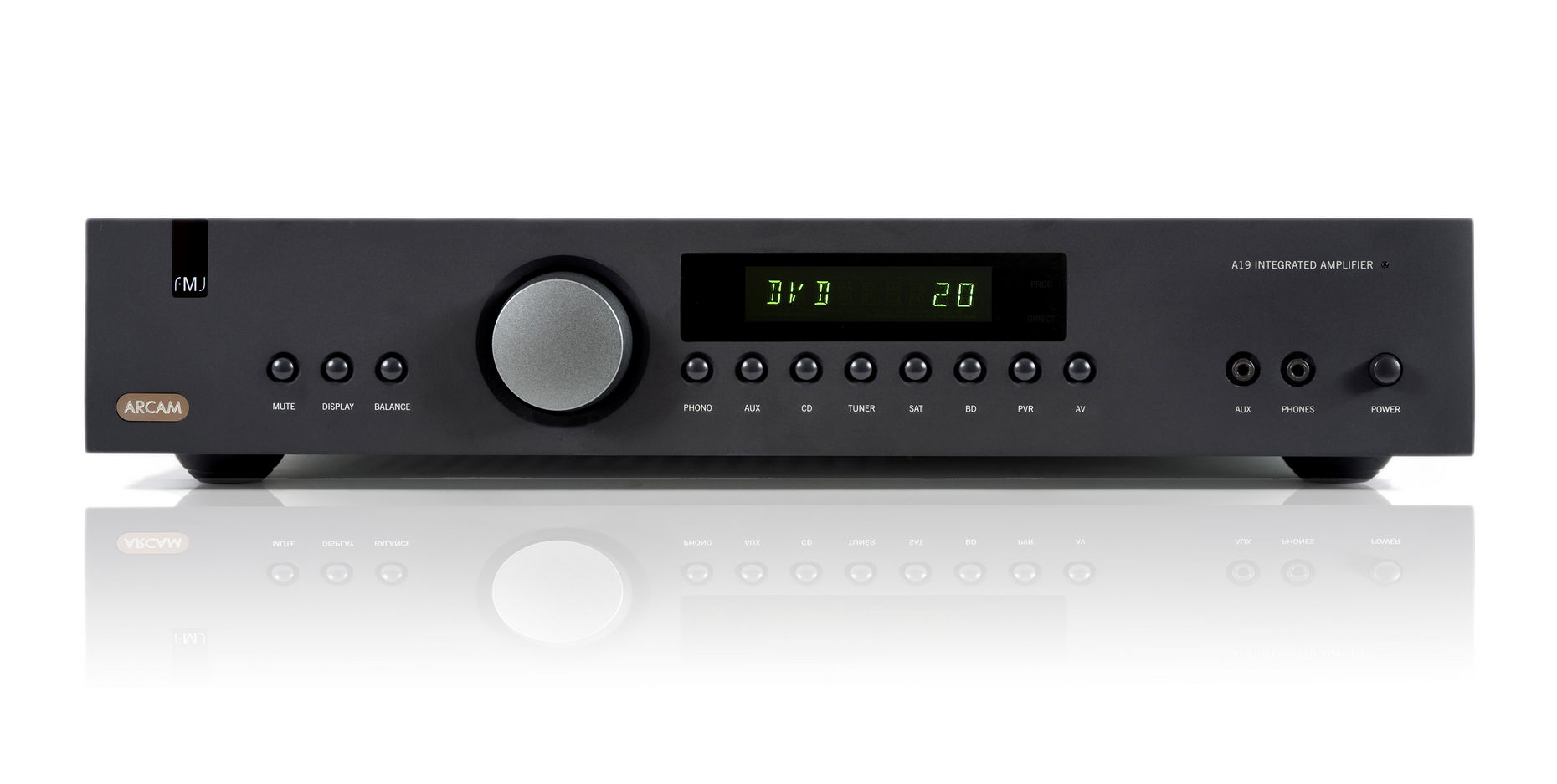

Arcam A19 Stereo Amplifier
הספקה 7 ימי עסקים
₪4990
₪4990
תיאור המוצר
הספקה 7 ימי עסקים
מפרט טכני
Technical SpecificationsContinuous power output (20Hz—20kHz at 0.5% THD), per channel
Both channels, 8Ω, 20Hz—20kHz: 50W
Single channel, 4Ω, at 1kHz: 90W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.003%
Inputs
Phono (MM) cartridge
Input sensitivity at 1kHz: 5mV
Input impedance: 47kΩ + 100pF
Frequency response (ref. RIAA curve): 20Hz—20kHz ± 1dB
Signal/noise ratio (Awtd) 50W, ref. 5mV input: 80dB
Overload margin, 50mV at 1kHz: 20dB
Line and AV inputs
Nominal sensitivity: 1V
Input impedance: 10kΩ
Maximum input: 4.6Vrms
Frequency response: 20Hz—20kHz ± 0.2dB
Signal/noise ratio (Awtd) 50W, ref. 1V input: 105dB
Outputs
Preamplifier output
Nominal output level: 630mV
Output impedance: 230Ω
Heaphones Output
Maximum output level into 600Ω: 4V
Output impedance: 1ohm
Load range: 16Ω—2kΩ
Accessory power output
Using accessory power cable supplied, provides two 2.1mm DC connectors: 6V, 1A
General
Power consumption (maximum): 350W
Dimensions W x D x H (including feet): 432 x 275 x 85mm
Weight (net): 8.5kg
Weight (packed): 10.2kg
Supplied accessories: Mains lead, CR108 remote control, 2 x AAA batteries, Accessory power cable
לאתר היצרן: לחץ כאן
