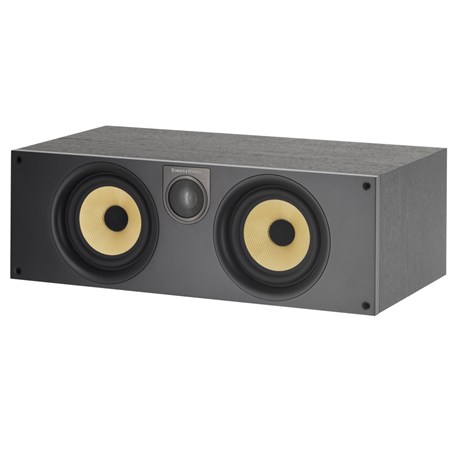

Center Speaker B&W HTM-62s2

Woven Kevlar

Crossover Tuning

Nautilus Tapering Tube

Flowport

Technical features

Decoupled Double Dome aluminium tweeter with Nautilus™ tube loading
Kevlar® brand fibre cone bass/midrange
Flowport™

txt3

2-way vented-box system

Drive units

1x ø25mm (1 in) aluminium dome high-frequency
2x ø130mm (5 in) woven Kevlar® cone bass/midrange

Frequency range

-6dB at 48Hz and 50kHz

Frequency response

70Hz - 22kHz ±3dB on reference axis

Dispersion

Within 2dB of reference response
Horizontal: over 20º arc
Vertical: over 60º arc

Sensitivity

87dB spl (2.83V, 1m)

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m)
<1% 120Hz - 22kHz
<0.5% 180Hz - 20kHz

Nominal impedance

8Ω (minimum 5.2Ω)

Crossover frequencies

4kHz

Recommended amplifier power

25W - 120W into 8Ω on unclipped programme

Max. recommended cable impedance

0.1Ω

Dimensions

Height: 160mm (6.3 in)
Width: 480mm (18.9 in)
Depth: 279mm (11 in) cabinet, grille and terminals

Net weight

7.9kg (17.3 lb)

Finishes

Black Ash
