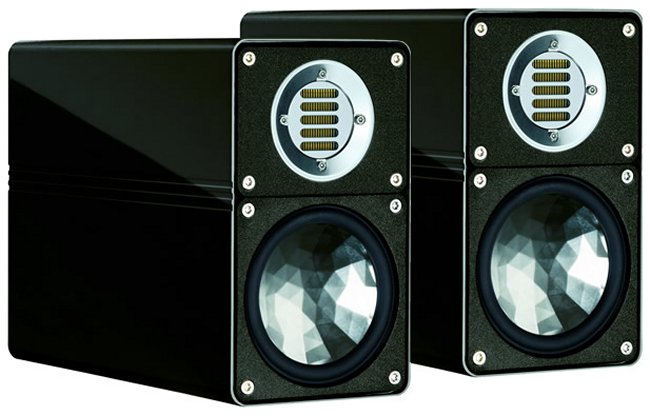

ELAC shelf speakers model 310

מפרט טכני

txt3

NOTE- PRICE IS PER PAIR>"CE"stands for "Crystal Edition", the new crystal-membrane technology that has caused a sensation world-wide. Therefore we decided to also equip the "ELAC 330" with this new award-winning crystal-membrane woofer technology, in addition to all the well-known technologica features of this ELAC cult speaker like e.g. the JET tweeter.l

• The crystal-like surface of the aluminium membrane is eye-catching. Partial vibrations are reduced considerably by the new, angled surface structure. In addition, by using a press formed structure, the mem-brane is more rigid and has lower distortion, which not only prevents partial vibrations in the crossover zone, but also reduces harmonic distortion. Due to the high rigidity of the aluminium membrane, it is now possible to attach the voice coil not only to the cone neck but also directly to the aluminium membrane. This significantly extends the cone‘s bandwidth right across the frequency range giving a noticeably more even, continuous frequency response.Specifications (Specifications and design features are subject to change.) Dimensions H × W × D / LS Stand 274 × 188 × 345 mm / 717 × 290 × 325 mm Details Weight 10.5 kg Principle 2-ways, bass reflex Woofer Bass Port 1 × 180 mm AS-XR cone LLD 1 × 60 mm with Bass Control Plug Tweeter 1 × JET III, (mag. shielded) Recom. Amplifier Power at Nominal Impedance 30-200 W / channel Crossover Frequency 2,900 Hz Sensitivity 87.5 dB / 2.83 V / 1 m Nominal Impedance suitable for amplifiers (from ... to) 4 Ω 4 ... 8 Ω Minimum Impedance 3.7 Ω at 195 Hz Frequency Range acc. to IEC 268-5 40 50,000 Hz Nominal / Peak Power Handling 80 / 120 W
